Upright

The closed design of the frame upright provides a stronger section than that of the standard open “C” profiles used by other manufacturers.

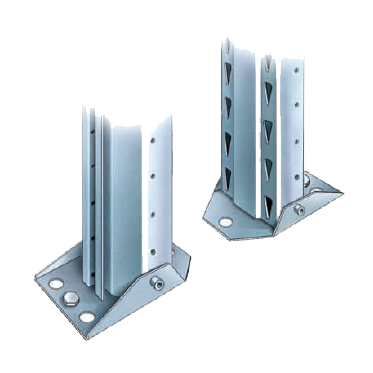

Base Plate

Reinforced baseplate design significantly reduces frame base and floor fixing damage from ground level pallet movements.

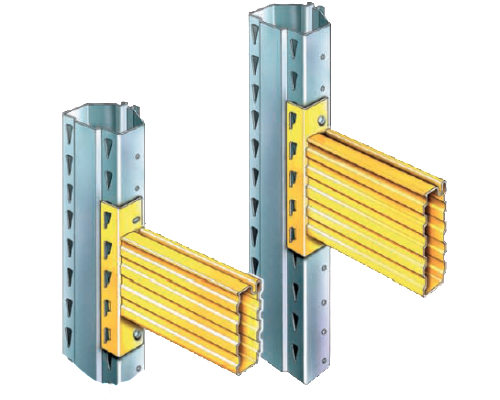

Beam

The beams are profiled sections with quadruple flange thickness at points of maximum stress for high loading capability. The grooves on top of the beams are used to locate modular heavy duty steel shelf panels, pallet support bars, and drum cradles for the storage of non palletized or special goods.

The welded beam end connector has five anchor points, three of them operating in tension and two in compression, providing a better connection to the upright with increased load capacity.

The adjustment of beams at intervals of 50mm facilitates optimum use of space available.

The beams are powder coated in a standard yellow colour (RAL 1004), and go through a hot wash degreasing and iron phosphate pre-treatment, followed by an application of thermosetting powder paint, followed by a curing at a temperature of 240C in a force ventilated air circulation oven.

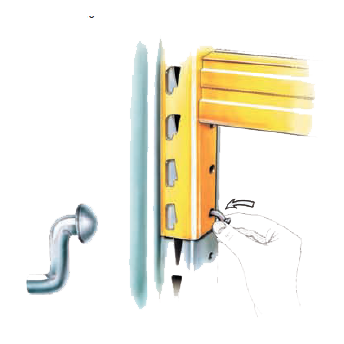

Beam Locking Pin

The beam locking pin prevents an accidental lifting of the beams off the upright.

Brace

The beam locking pin prevents an accidental lifting of the beams off the upright.

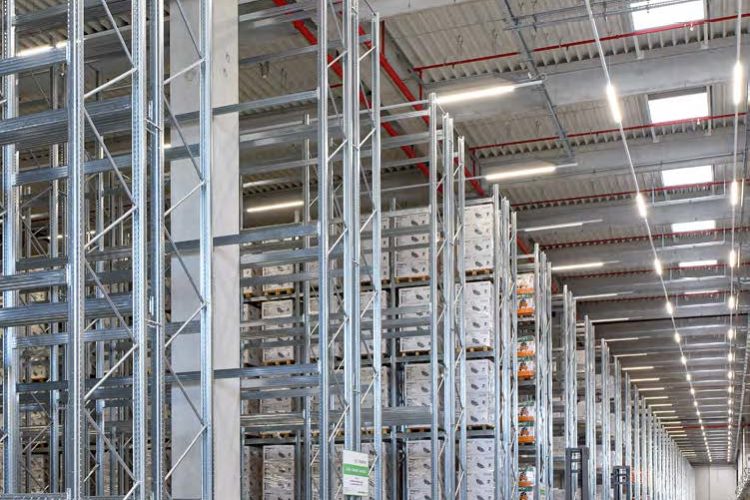

SUPERBUILD

Pallet racking system

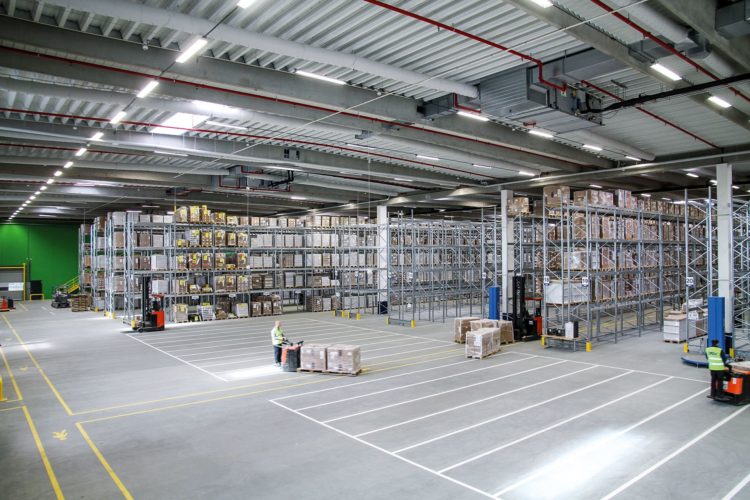

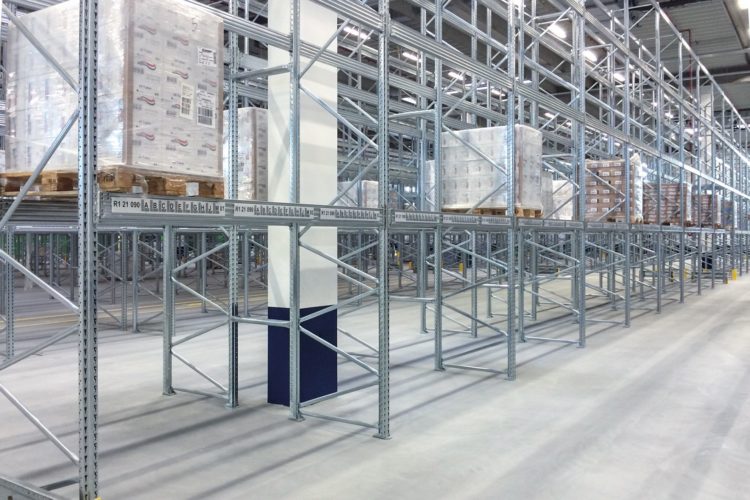

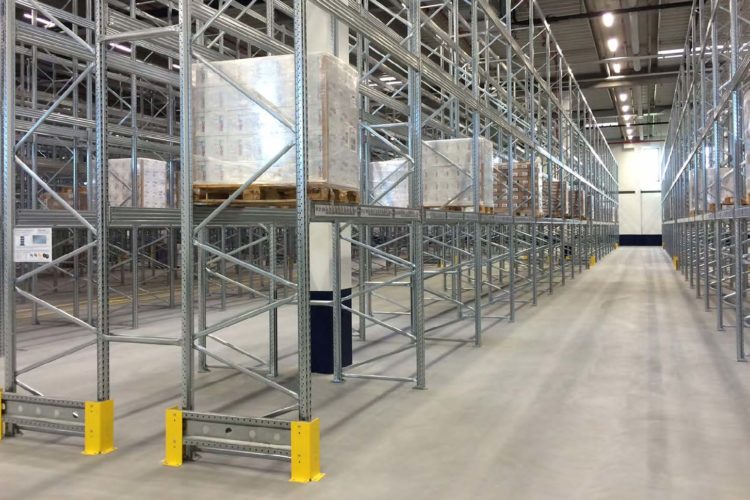

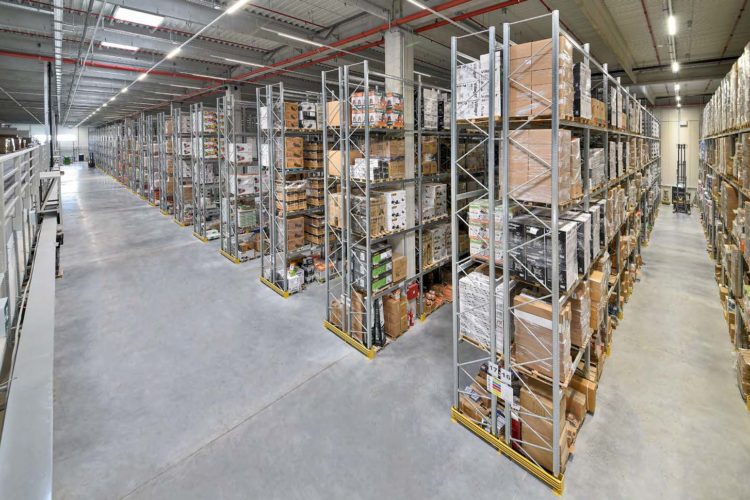

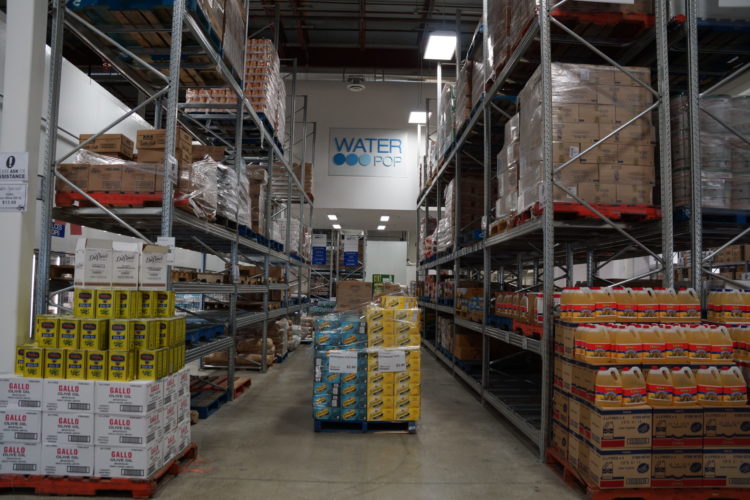

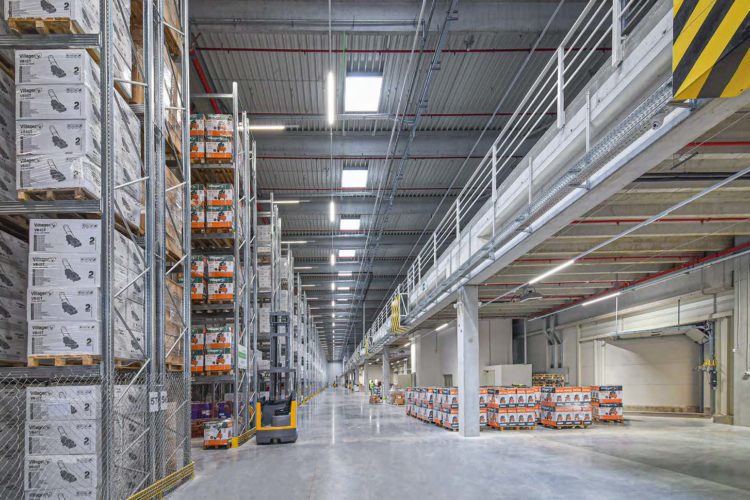

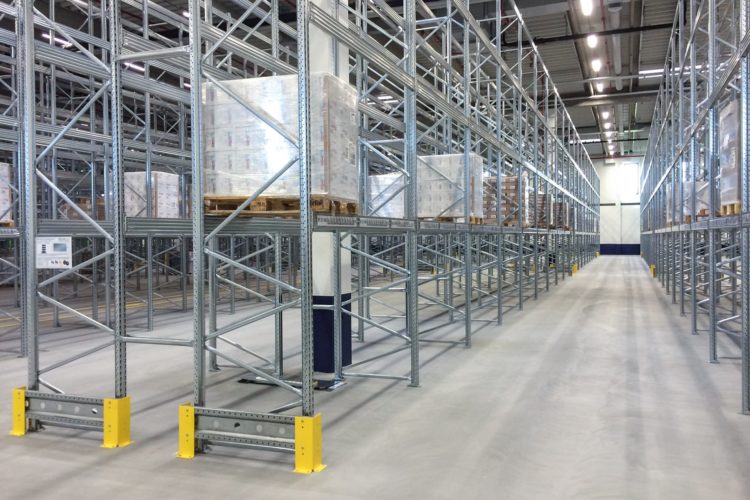

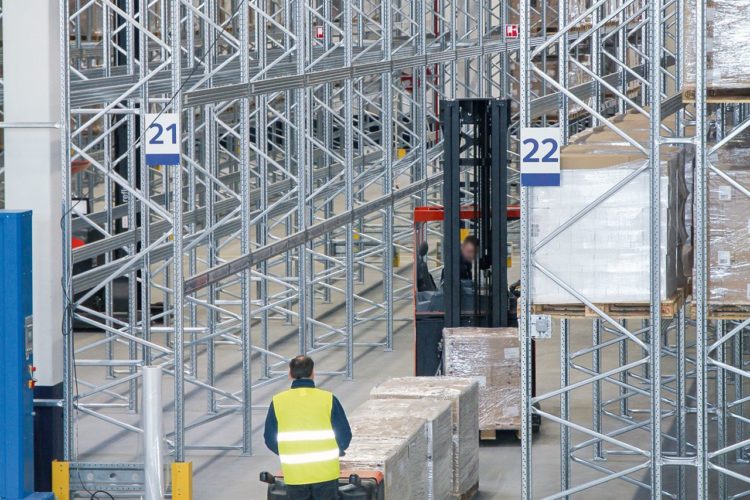

Conceived and designed to satisfy the requirements of medium to heavy duty storage, the SUPERBUILD pallet racking system is the answer to modern pallet racking requirements of rapid assembly coupled with high strength and stability at a very competitive price.
SUPERBUILD is available in three different frame load options, varying from 7.5 tons to 15 tons. The closed design of the frame upright provides a stronger section than that of the standard open C-profiles used by other manufacturers.

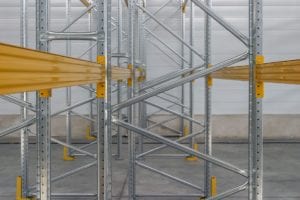

Beams are made of composite sections, up to four times their material thickness at points of maximum stress. They have connectors with 5 anchor points at either side, 3 of them operating in tension and 2 in compression, providing improved connection to the upright, with increased load.

Produced from EN10204 certified high tensile structural steel accompanied by a 3.1 certificate. All Superbuild pallet racking components are produced using Sendzimir galvanized steel. Beams may also be provided with an additional powder coated layer which both provides additional protection and exceptional visibility.

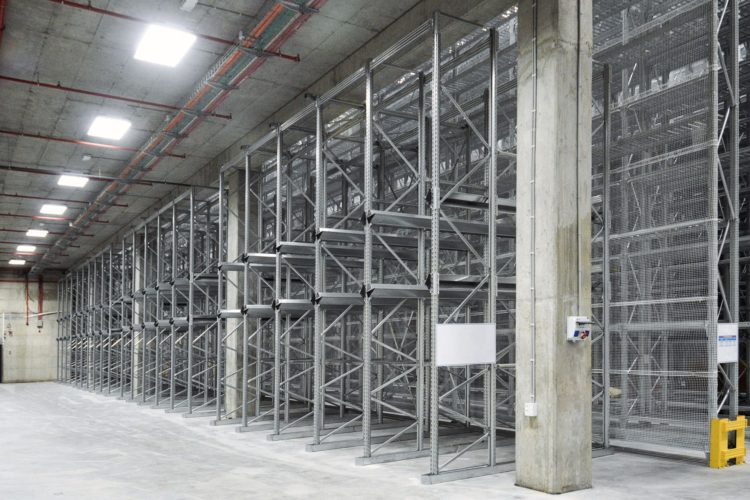

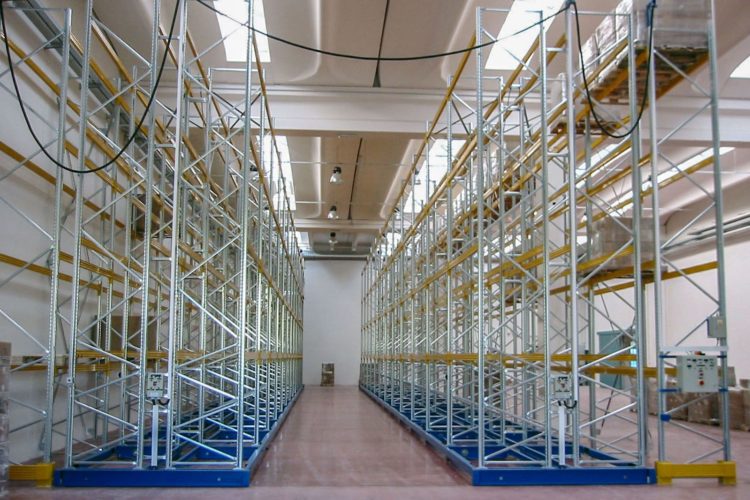

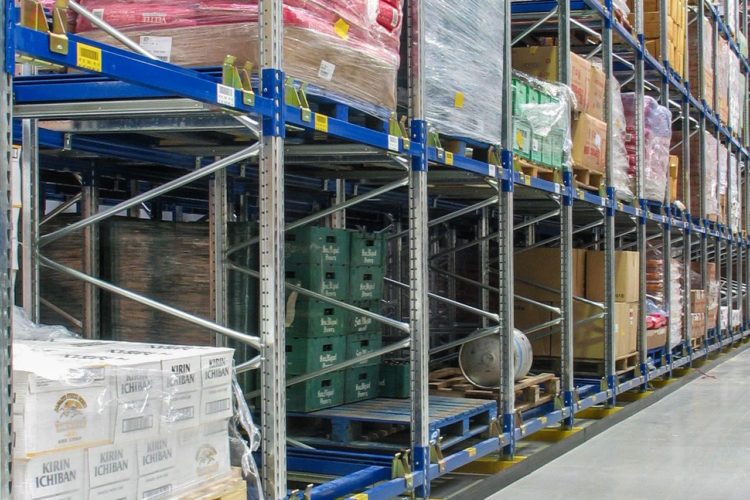

Ideal product for drive-In systemsmobile rackingpallet flowpushbackvery narrow aisle, as well as countless solutions for a vast range of automated installations.

  • rust resistant thanks to the use of galvanized steel;
  • structural components produced from 3.1 certified high tensile structural steels in accordance with EN10204 standards;
  • availability of a wide range of standardized accessories;
  • suited to a vast range of load applications;
  • 50mm upright pitch.

Accessories

With flanged tops these shelving panels can support a range of non-palletized goods.

Row spacers are used as connectors between the frames of double entry racking. They are placed on either side of the upright.

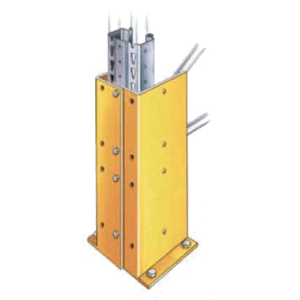

Protects the accessible side of the columns from damage.

Allows for clearly marked and distinct aisles.

When floor slab load bearing weight is not sufficient, these load distribution plates may be used to better distribute the load.

This support bar is perfect for the storage of pallets, maximizing space, efficiency, and cost of the whole system.

These support bars may be used for pallet storage, or other flat objects that require to be raised for easy accessibility.

Located in the back-side of the system, this beam ensures pallets are properly stored.

Protects the side of frames from damage.

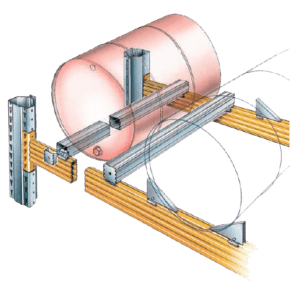

These drum cradles are ideal for the storage of drums, taking full advantage of available space.

For storage of bins, these bin cradles are the perfect solution.

These beams provide 50% shelf surface coverage, and are perfect for use in installations equipped with sprinkler systems.
