Column

The connection between the Unicant column and the cantilever arm is created with only two high resistance bolts (Class 12.9, according to DIN 912). This feature facilitates the speed of assembly.The geometry of this unique connection is the result of exhaustive structural analysis and meticulous testing aimed at creating a connection which will provide clients maximum ease of use coupled with top performance.
The simplicity of the connection coupled with the wide range of pre-assembled accessories available on cantilever arms ensure a particularly fast and effortless assembly of the Unicant cantilever structures. The Unicant cantilever is manufactured in the standard colour of red RAL 3000 for the main structural elements.

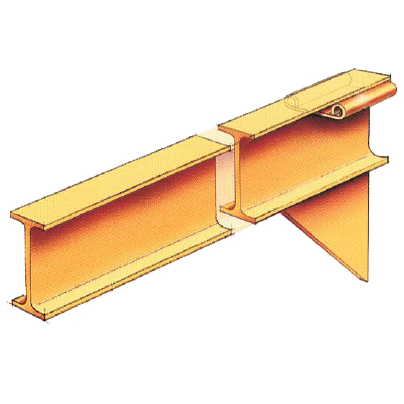

Standard Arm

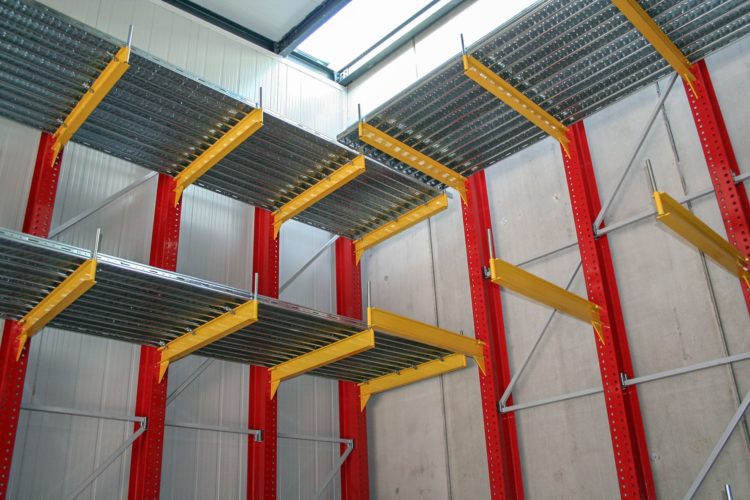

The Unicant cantilever arms can be accessorized with steel planks, thus creating open storage levels clear of obstacles. Steel planks are available as smooth, moulded, or perforated. The Unicant cantilever arms are manufactured in the standard colour of yellow RAL 1004, ensuring an optimal visibility of the structure.
The Unicant cantilever arms can be supplied with a wide range of accessories such as end stop, spool holders, and steel plank tops, thus tailoring the loading surface to specific requirements.

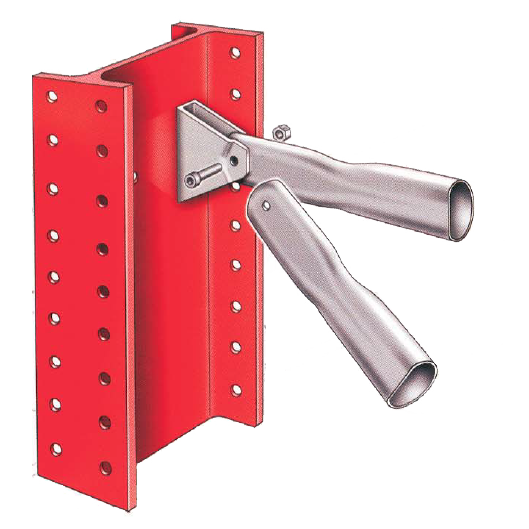

Bracing

The cross bracings are made from closed galvanized profile sections manufactured using sophisticated roll forming technology and zinc coated according to the Sendzimir procedure.

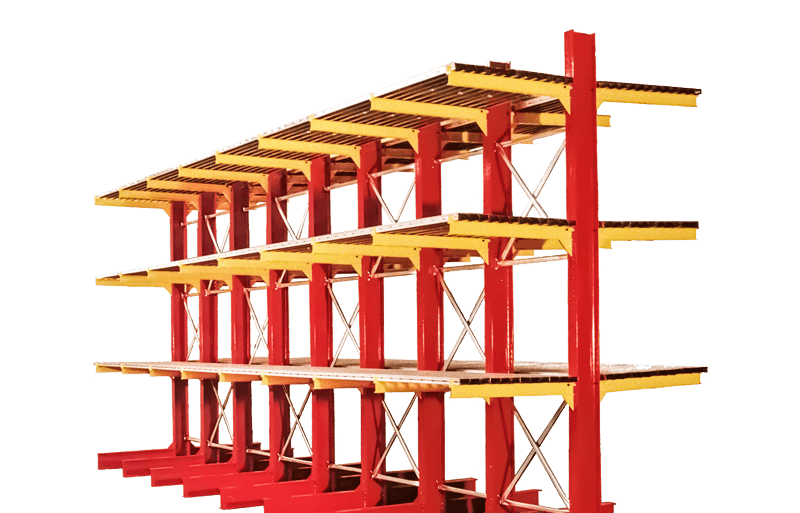

UNICANT

Cantilever racking system for heavy duty storage
Perfect for items with various lengths and bulk requiring clear and continuous loading levels.
System designed to maximise both the available space between levels and their load bearing capacity without compromising safety on the installation.

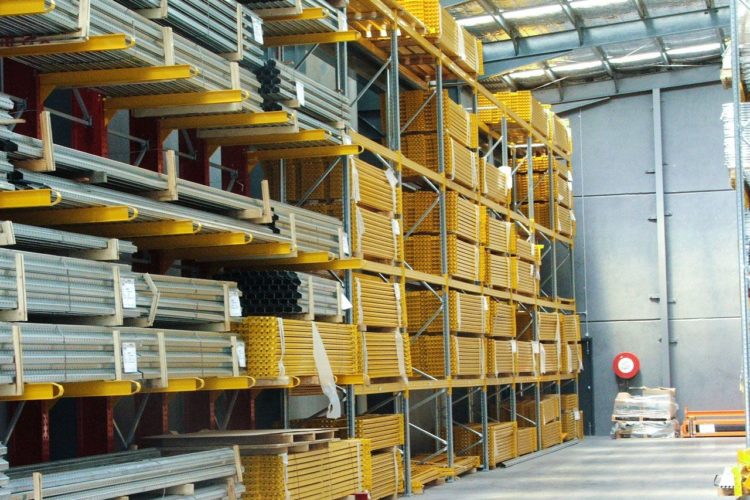

UNICANT is a heavy duty modular cantilever system. Cantilever systems are used to store objects of varying lengths and bulk requiring clear and continuous loading levels. The UNICANT system has been designed to maximize both the available space between levels and their load bearing capacity without compromising the safety of the installation.

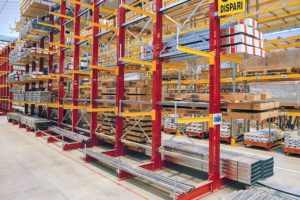

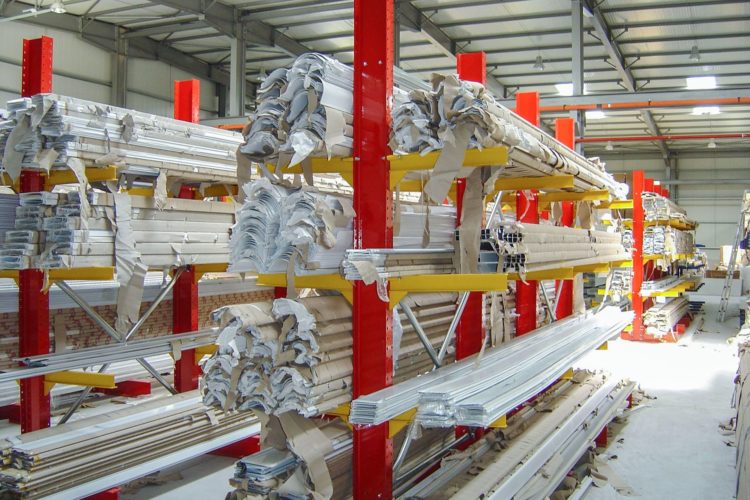

The UNICANT system is ideal for the storage of long goods. The range of available arm lengths and load bearing capacities allow the system to provide solutions for a large variety of goods, such as, wood panels, sheet metal plastic and metal profiles, semi finished products etc.

The UNICANT cantilever system is self sustaining and therefore does not require to be attached to walls or other fixed objects to guarantee its load bearing capacity. The loading levels are easily varied at a pitch of 50mm.

UNICANT gives clients the security of obtaining a competitive product both in terms of quality and cost efficiency while safeguarding elevated safety standards.

DOWNLOAD THE UNICANT CATALOGUE
  • good range of available arm lengths and load bearing capacities to provide solutions for a large variety of finished and semi-finished goods;
  • self sustaining system not requiring attachment to walls or other fixed objects to guarantee full load bearing capacity;
  • loading levels variable at 50 mm pitch.

Accessories

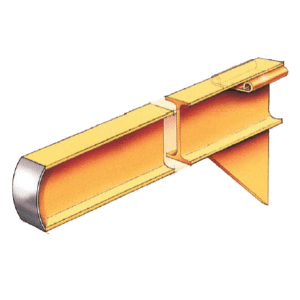

Arm with Entrance Crescent

Entrance crescents allow goods to be loaded safely by providing an angled face which helps goods to slide onto the arm.

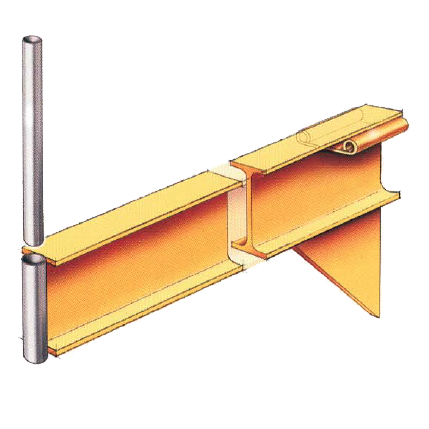

Arm with End Stop

End stops are available on cantilever arms provide perfect storage for pipes and other long items. End stops are removable to allow easy loading and unloading.

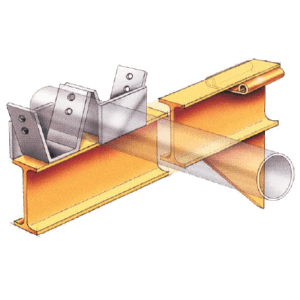

Arm with Spool Holder

Cantilever arms with spool holders are available as a custom item for storing drums or reels whilst allowing the reel to be used freely.

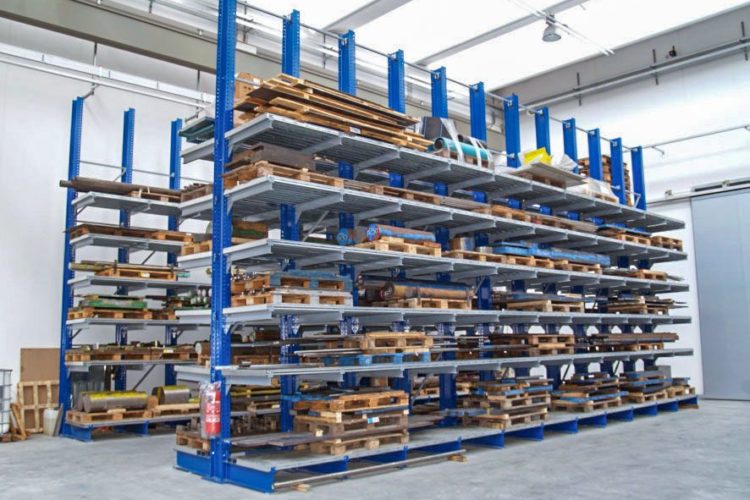

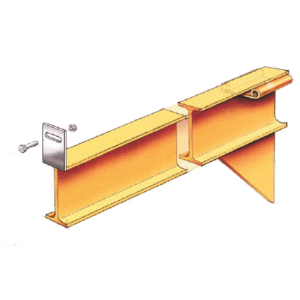

Arm with Steel Plank Stop

The addition of steel planks – available in three different versions, smooth, moulded or perforated – allow goods of varying volume as well as pallets of varied dimensions to be stored with maximum ease.
