Semi-Automatic
Pallet Shuttle System
The semi-automatic pallet shuttle is an automated storage solution that maximizes warehouse space and streamlines pallet handling. Ideal for deep-lane storage, it boosts efficiency while ensuring reliable performance even in sub-zero environments.
Remote-controlled, LED-guided, and built for cold storage, the semi-automatic pallet shuttle makes deep-lane pallet handling simple and efficient.
Trusted by Major Brands
Across North America
See the Semi-Automatic Pallet Shuttle in Action
Watch how it moves pallets efficiently through deep-lane storage, maximizes space, and handles loads reliably — An automated storage solution with minimal operator effort.
A Better Alternative to Pallet Flow
Better Throughput, Reliable, and Cost-Effective
Maximize Storage,
Minimize Costs.

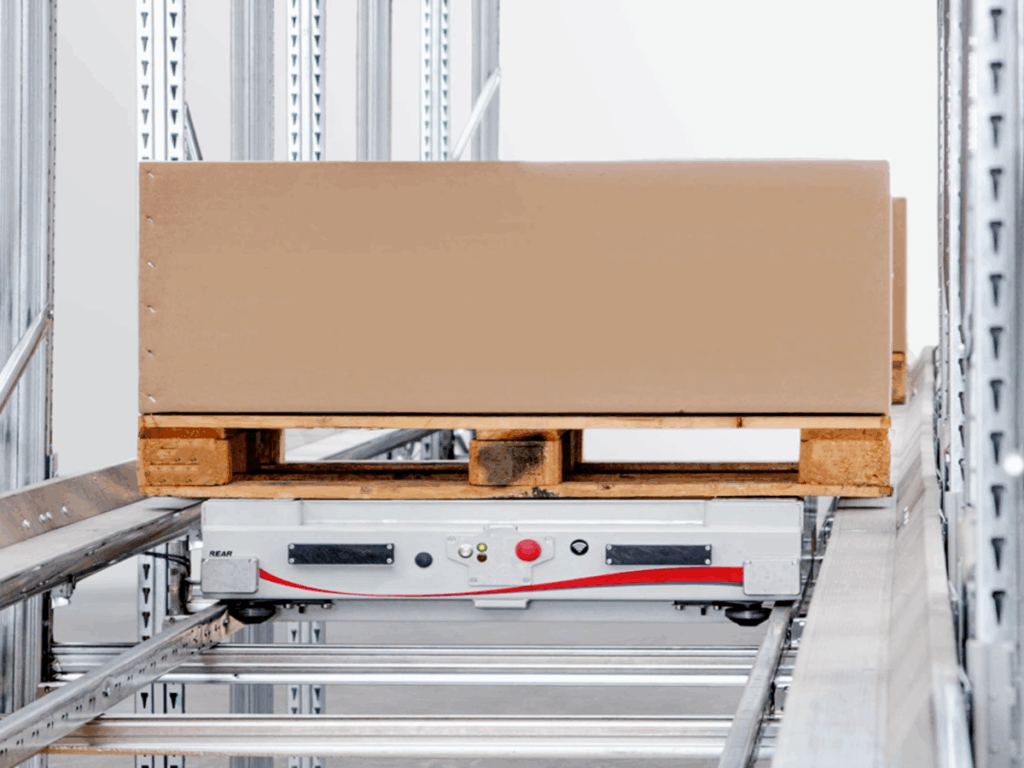

The semi-automatic pallet shuttle can lift pallets up and transport them deep into storage lanes over 40 meters, well beyond the reach of forklifts. This allows for a denser layout, greater storage depth, and better use of available space — all while lowering overall warehouse management costs.
Supporting both LIFO and FIFO workflows. Its ability to handle pallets of varying sizes and loads within the same lane makes it adaptable to existing drive-in structures or new self-supporting systems.
High-Speed,
Heavy-Duty Performance
The semi-automatic pallet shuttle moves pallets at a maximum speed of 1.22 m/s unloaded and 0.62 m/s loaded, completing up to 1,200 cycles per charge while handling loads up to 1,500 kg. Its powerful battery ensures reliable operation throughout long shifts. This automated storage solution allowing warehouses to maximize throughput, reduce wait times, and keep operations running smoothly without compromising safety.
Reliable,
Ready For Any Environment.
With its sturdy design and automated pallet movement, the pallet shuttle reduces forklift traffic inside racking, minimizing the risk of accidents and damage.
Engineered to work in freezing conditions down to -30°C, it provides consistent, safe performance even in demanding cold-storage environments.
Have questions about the system?
Expertly Engineered Storage Solutions, Built for Every Warehouse.
Semi-Automatic Pallet Shuttle
Specifications
All the key technical details you need to know about the pallet shuttle, so you can see exactly how it fits your operation.
FAQ
What is the maximum load the pallet shuttle can handle?
The semi-automatic pallet shuttle can lift and transport pallets weighing up to 1,500 kg, making it suitable for a wide range of warehouse applications.
How fast can the system move pallets?
Maximum speed is 1.22 m/s unloaded and 0.62 m/s loaded, allowing high-throughput operations.
Can it operate in cold storage environments?
Yes, the pallet shuttle is designed to work reliably in temperatures down to -30°C, ideal for freezers or refrigerated warehouses.
Does it support different pallet sizes and layouts?
Absolutely. The pallet shuttle can handle pallets of different sizes and loads in the same lane and works with both LIFO and FIFO storage methods.
How is the pallet shuttle controlled?
It’s remote-controlled, with LED indicators for precise positioning, allowing easy operation and real-time monitoring.
Can it be integrated into existing warehouse racking?
Yes, it adapts to existing drive-in structures or can be installed on self-supporting systems, providing flexibility for new or retrofitted warehouses.
What are the main benefits compared to traditional pallet flow systems?
This automated storage system offers higher throughput, better space utilization, reduced handling costs, and increased safety, making it a reliable, cost-effective alternative.
