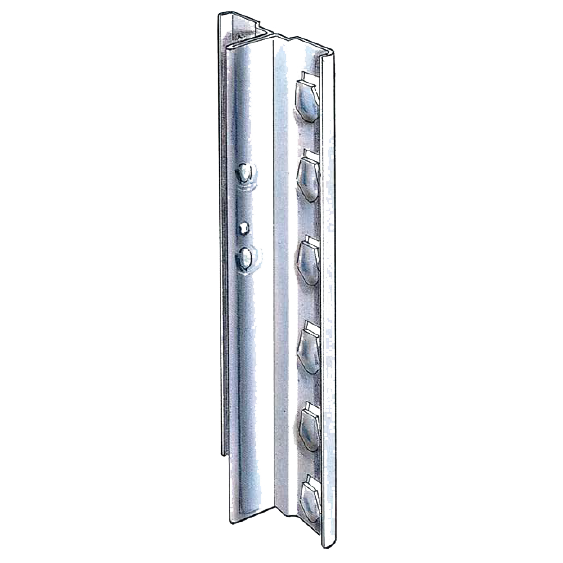

Upright

Available in three versions of varying gauges. The uprights have a “T” shape containing two connection systems. The first, on the front face, has connectors set at a pitch of 33mm, for the assembly of beams and accessories. The second, on the side face, has connectors set at a pitch of 132mm, used for the connection of the horizontal and diagonal spacer bars.

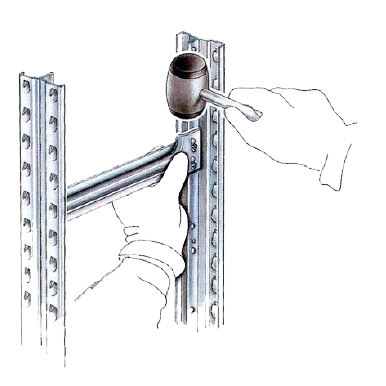

Spacer Bar

Spacebars come in horizontal and diagonal versions, and are connected to the uprights, making a complete frame. These spacebars are the cornerstone of the structural rigidity of the frame and system as a whole.

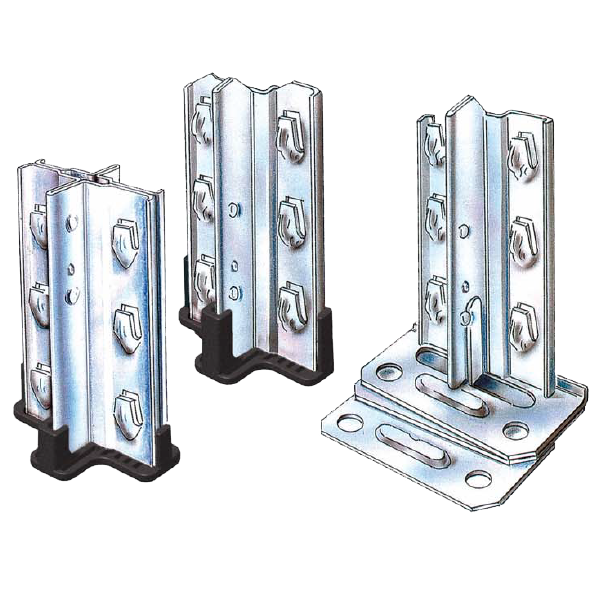

Base Plate

Plastic base plates are best used in domestic environments, with modest load bearing capacities. Steel base plates give the ability to mount the uprights to the floor, and are recommended for industrial environments.

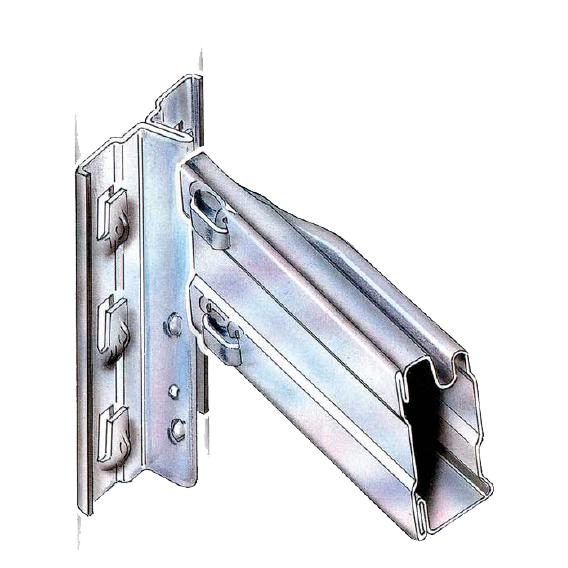

Beam

Beams are easily interlocked with the uprights, and contain a groove for the placement of shelf panels, modular containers, and other accessories.

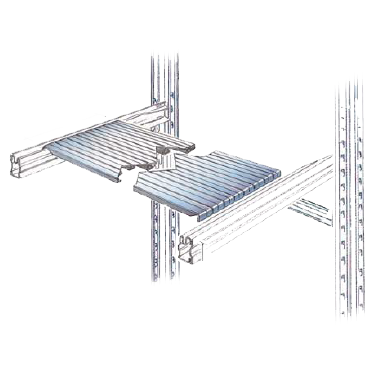

Shelf Panel

Shelf panels are supplied in 0.5 and 1 inch profiles, and vary in depth up to 31.5 inches.

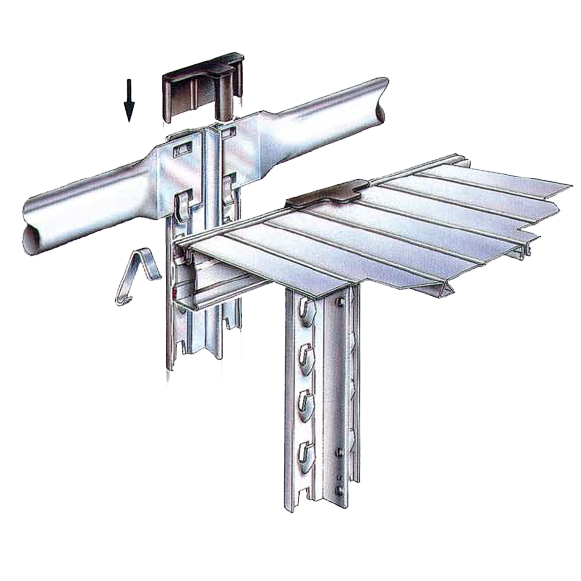

PVC Top Cap

PVC top caps are placed at the top of the uprights.

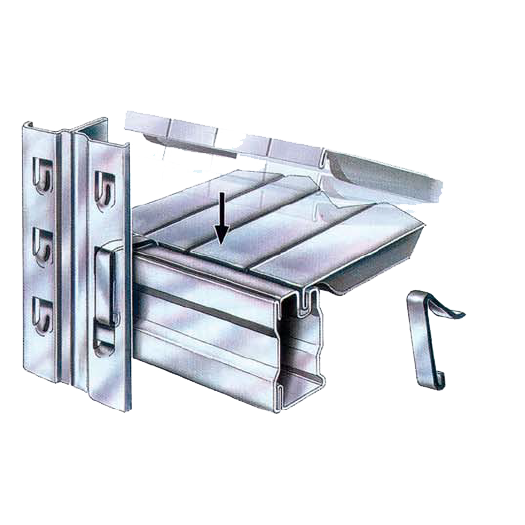

Safety Clip

To prevent accidental lifting of the beams and shelves, the safety clips should be used in all applications.

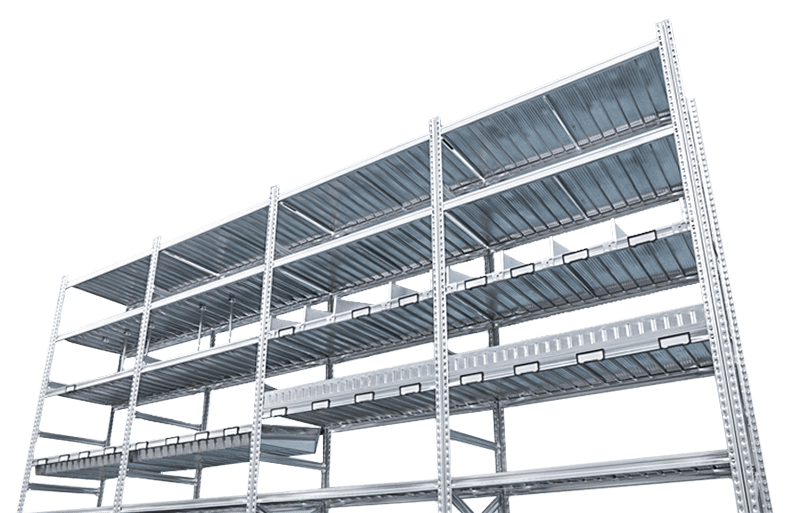

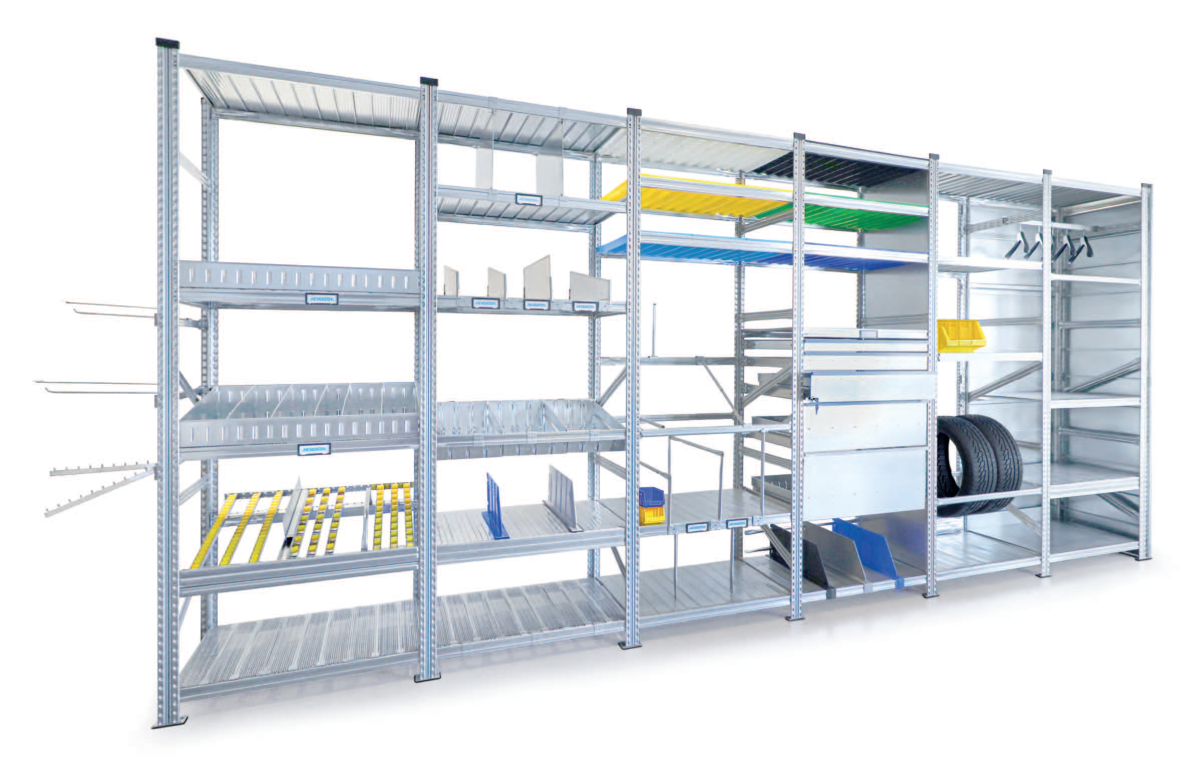

SUPER 123

Boltless, hand loaded shelving system
SUPER 123 is a highly versatile boltless shelving system created to satisfy the broadest needs of hand loaded storage requirements.

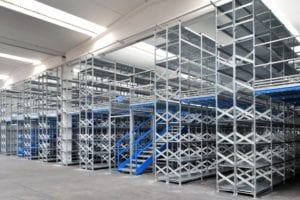

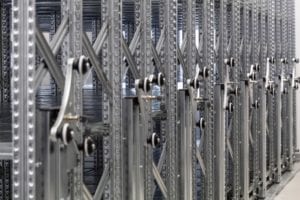

The key features of the SUPER 123 system include its speed of assembly, the ease and swiftness with which shelves can be repositioned and the wide array of available standardized accessories. It’s galvanized finish ensures product durability and corrosion protection. Also used in Catwalks, Mobile, and Carton Flow systems.
DOWNLOAD THE SUPER123 CATALOGUE
  • standard heights: 78″, 98″, 120″ all the way up to 16′ and can be cut down to any height in between;
  • standard widths: 24″, 36″, 42″, 48″, 53″, 60″, and 72″;
  • standard depths: 12″, 16″, 20″, 24″, and 32″;
  • excellent load bearing capacity performance – up to 1,200lbs per level;
  • boltless shelving system;
  • rust resistant thanks to the use of galvanized steel;
  • 33mm upright pitch;
  • high-tech design;
  • 90° corner units maximize storage capacity;

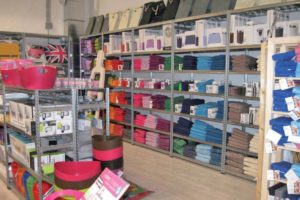

  • suitable for domestic as well as industrial use;
  • structural components produced from 3.1 certified high tensile structural steel in accordance with EN10204 standards;
  • internationally patented.

Accessories

metalsistem super 123 boltless shelving system

Back Panel/Cladding

Side Panel/Cladding

Garment Handing Bar

Tire Rack

Plastic Sliding Divider

Drawer

Tubular Divider

Perforated Plastic Panels

Magnetic Divider

Modular Container with Dividers

Sliding Divider

Full Height Divider

Retail Hook

Retail Hook with Pegs

Carton Flow Rollers

Shelf Tray with Dividers

Label Holder

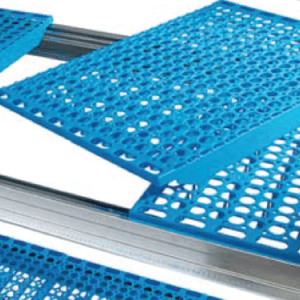

Perforated Plastic Shelf Panels

Made from high quality polypropylene, these perforated plastic panels are suitable for use within the food sector and are RoHS compliant. The shelf panels are perforated at >50% of their surface.

Perforated Steel Shelf Panels

Perforated at 50%, these panels can be used in installations with fire sprinkler systems to adhere by the fire code.

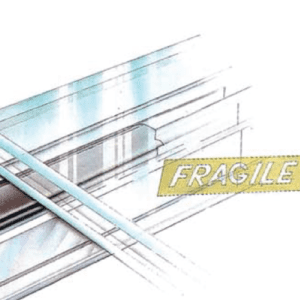

Glass Shelf

A plastic strip can be fitted on the beams to accommodate glass shelves.

Chipboard Shelf

Chipboard and wooden shelves can be fitted to create a unique look and feel.

Corner Solution

By means of four dedicated brackets, corner solutions allow for the best possible use of available storage space, especially within small rooms.

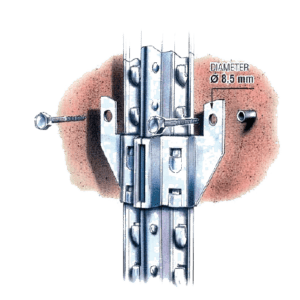

Wall Bracket

In certain installations it is necessary to affix the shelving units to the wall using wall brackets and bolts.

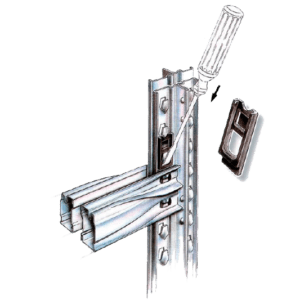

Shelf Fastening Clip

This fastening clip prevents the accidental lifting and displacement of the shelf panels.

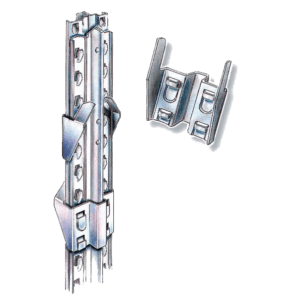

Back-to-Back Frame Clip

They are used to prevent accidental lifting of the beams when building back-to-back bays.

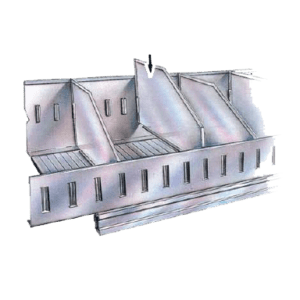

Shelf Tray

Shelf trays are ideal for the storage of various goods, and have a standard shelf bottom, front and back panels, and can be accessorized with dividers.

Divider for Exhaust Pipes

Spigots designed for the separation of tubes, exhaust pipes, and conduits.

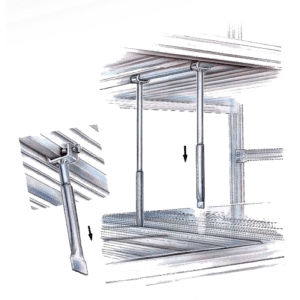

Telescopic Tube Divider

Used for the separation of cylindrical components or materials difficult to store. They are fixed to the upper shelf by means of a clamp connection.

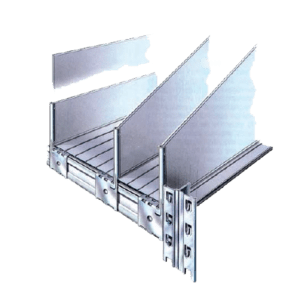

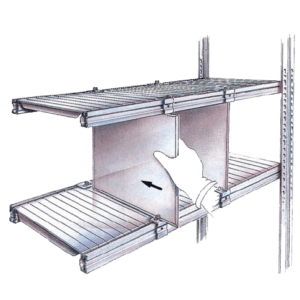

Fixed Height Divider

Available in three different heights, and can be inserted in any position on the shelf by means of spring clips located on the beams.

Sliding Dividers

Vertical sliding dividers have been designed to separate boxed items. The dividers come in different heights, and trapezoidal versions.

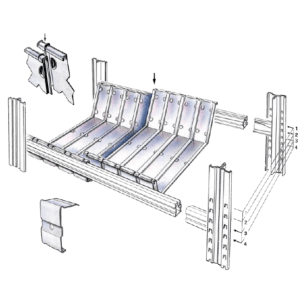

Modular Containers

These modular containers can be accessorized with dividers, ideal for the storage of small goods.

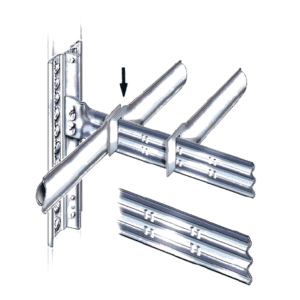

Garment Hanging Bar

The oval shaped beams and tubes are compatible with most types of hooks and provide a cost effective solution to garment storage and for hanging loads.

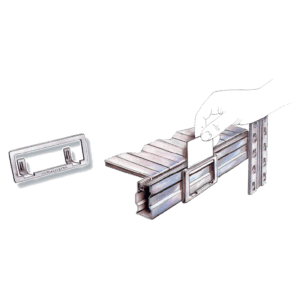

Label Holder

Label holders are clipped securely onto the beams, and accommodate label inserts.

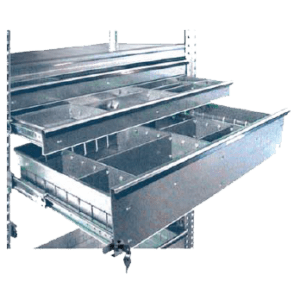

Modular Drawers

Modular drawers are fully integrated with the Super123 system and are attached directly to the frames.

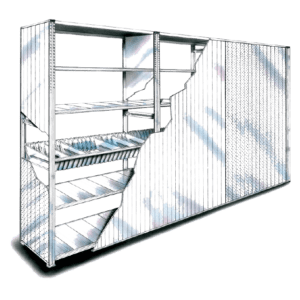

Cladding Panels

Cladding panels can be used to separate bays and are placed on the backs of bays, or sides.

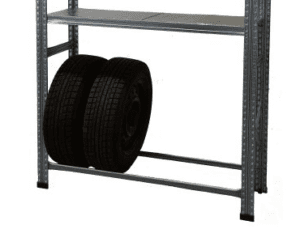

Tire Rack

A set of oval shaped beams can be used for the storage of tires.

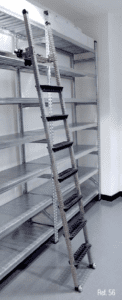

Mobile Ladder

Mobile ladders are available in three different heights and can be supplied with guide rails and curves to adapt to any environment.

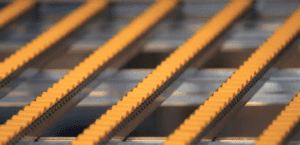

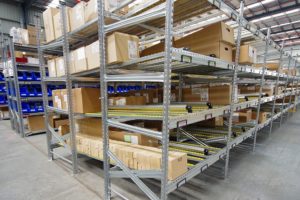

Carton Flow

Carton flow beds consist of one or more inclined runways equipped with specially designed roller tracks. Merchandise is loaded in the rear of each runway and moves toward the picking station.
